Chery Series

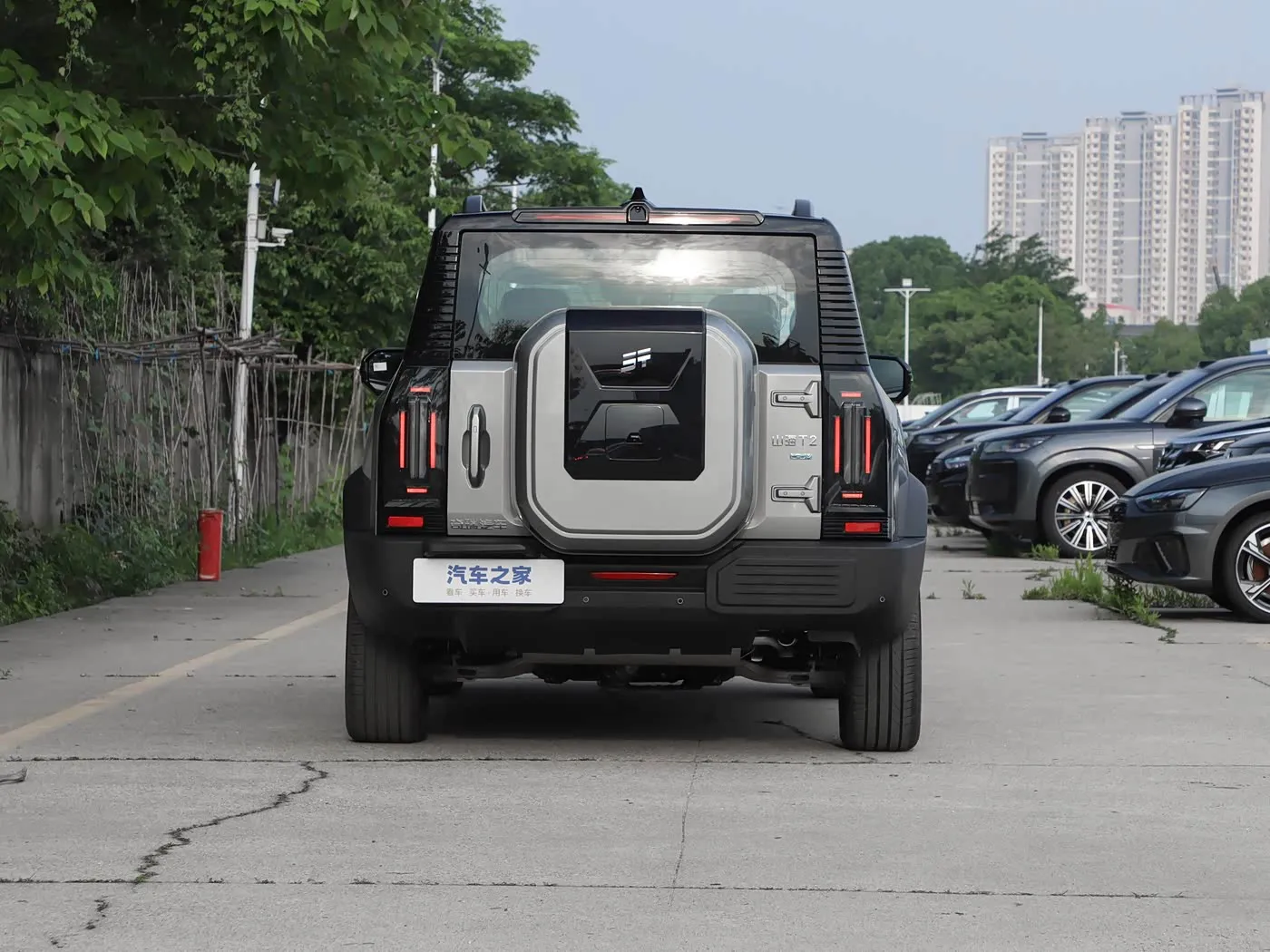

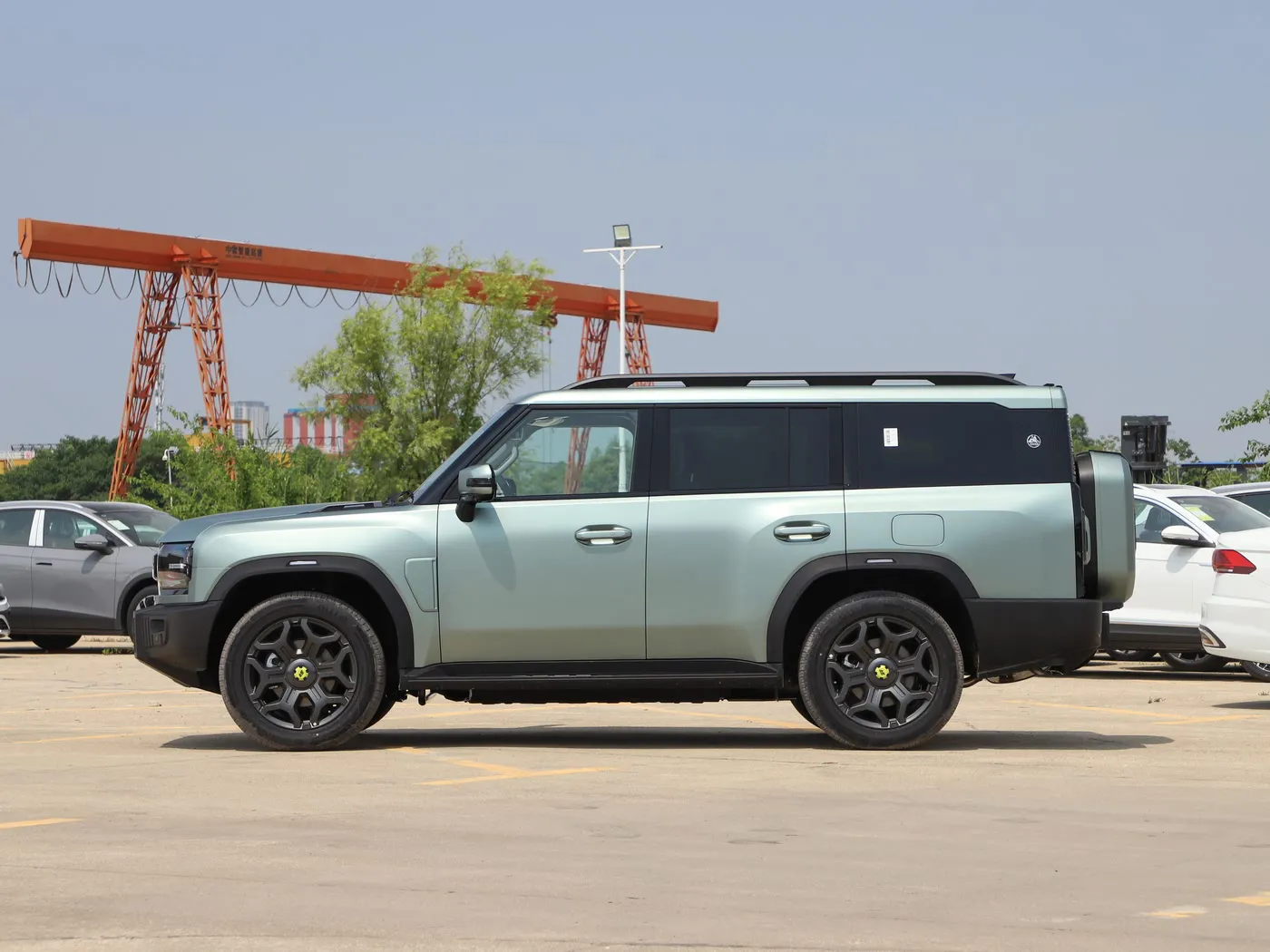

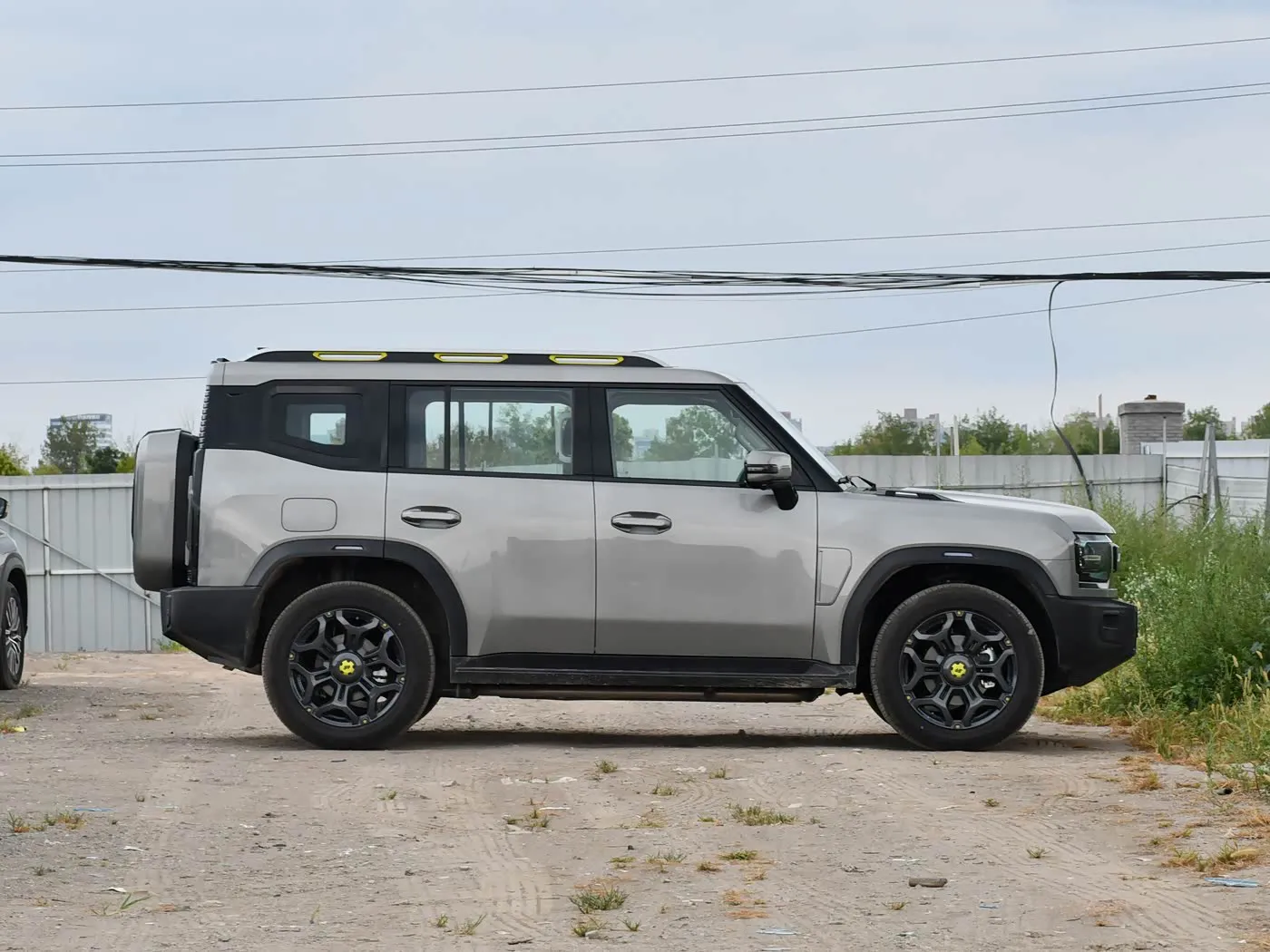

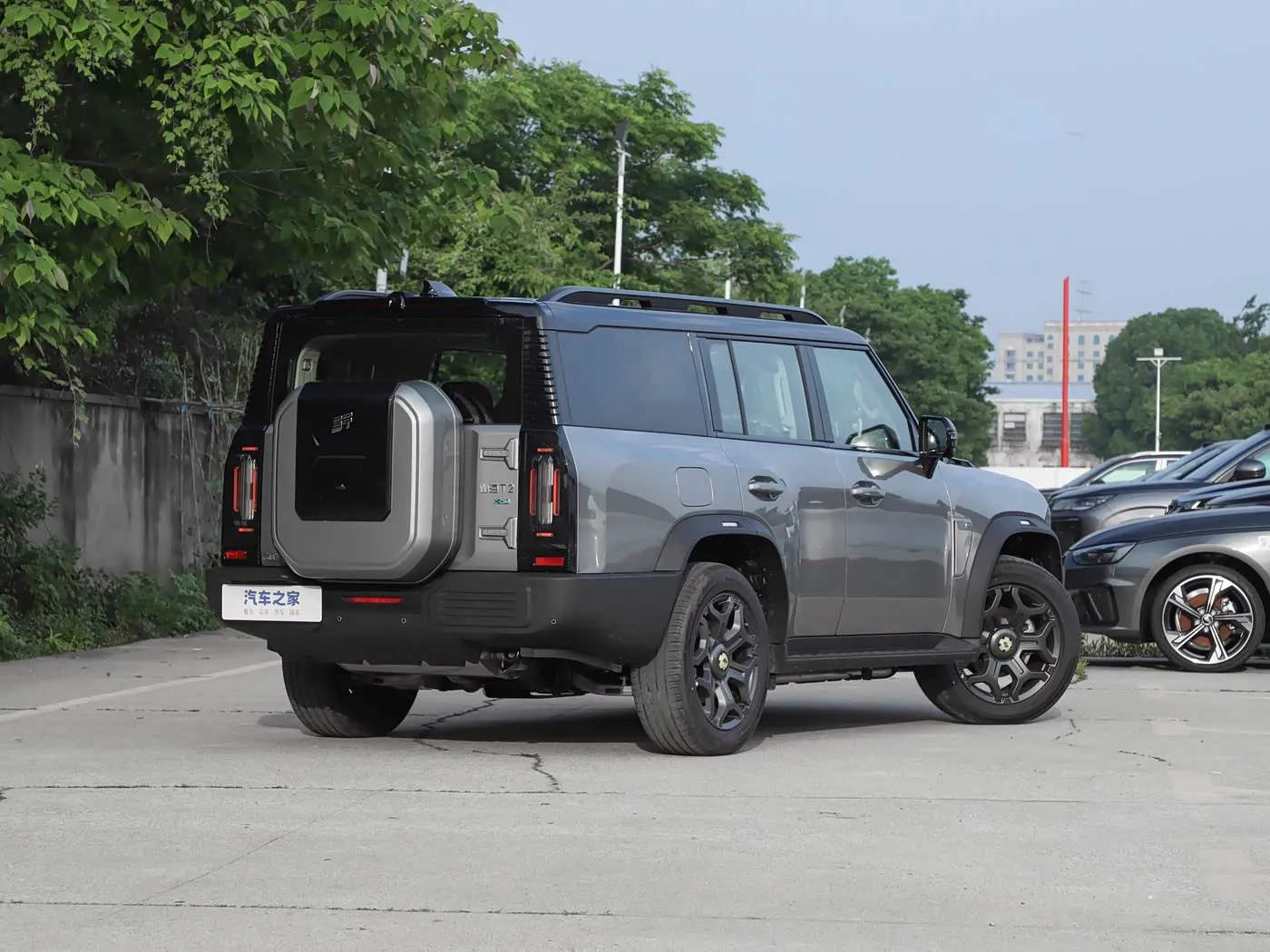

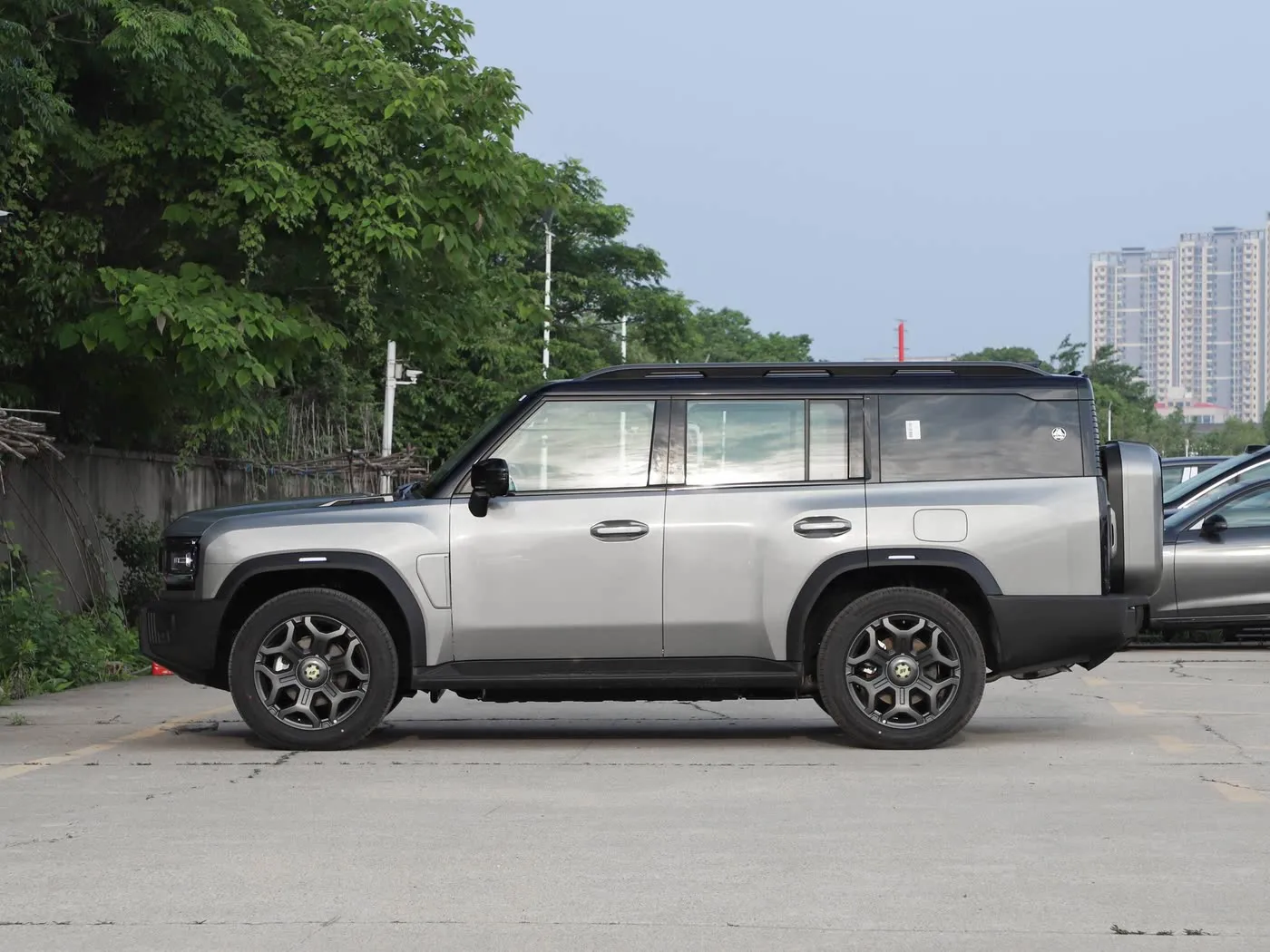

it is a compact plug-in hybrid SUV launched by Jietu Motors, It is equipped with a 1.5T turbocharged engine and a 3-speed DHT hybrid dedicated gearbox. The system has a comprehensive power of 280kW, a CLTC pure electric endurance of 120km, and a feed fuel consumption as low as 6.3L/100km 1 . It adopts hardcore "square box" shape, equipped with external spare tire and electric tail door, providing 7-seat layout and spacious space.
Product Description

Basic Parameters
| manufacturer | level | energy Type |
| chery Automobile | compact SUV | plug-in hybrid |
| time to market | engine | pure electric cruising Range (km) Ministry of Industry and Information Technology |
| 2025.04 | 1.5T 156 horsepower L4 plug-in hybrid | 93 |
| pure electric cruising Range (km)WLTC | pure electric cruising Range (km)CLTC | charging time (hours) |
| 93 | 120 | fast charge for 0.5 hours Slow charge for 4 hours |
| fast charge quantity (%) | maximum power (kW) | maximum torque (N 路 m) |
| 30-80 | 280 | 610 |
| gearbox | length x Width x Height (mm) | body structure |
| 3rd gear DHT | 5034x2006x1880 | 5-door 7-seat SUV |
| maximum speed (km/h) | official 100km acceleration time (s) | WLTC comprehensive fuel consumption (L/100km) |
| 203 | ![]() | 1.53 |
| power consumption per hundred kilometers (kWh/100km) | energy equivalent fuel consumption (L/100km) | minimum state of charge fuel consumption (L/100km)WLTC |
| 20.5 | 2.32 | 6.53 |
| vehicle warranty period | first owner warranty period | |
| 4 years or 100000km | lifetime Warranty (Liability Exemption Terms Subject to Official) |
Body
| body structure | SUV |
| number of doors (PCs) | 5 |
| door opening mode | swing door |
| number of seats (unit) | 7 |
| curb weight (kg) | 2183 |
| full load mass (kg) | 2880 |
| fuel tank volume (L) | 70 |
| luggage compartment volume (L) | - |
| minimum turning radius | - |

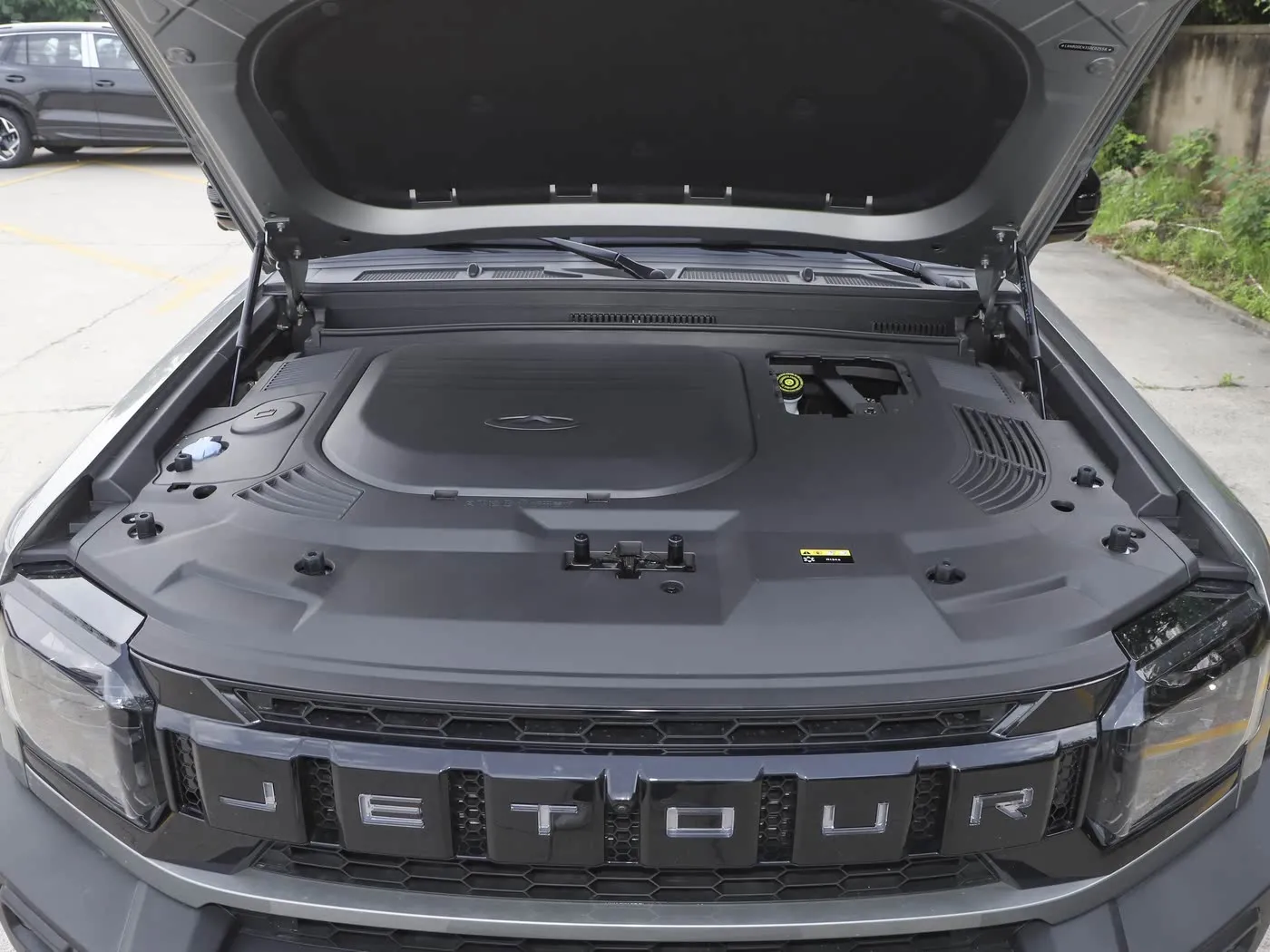

Engine
| engine Model | SQRH4J15 |
| displacement (mL) | 1499 |
| displacement (L) | 1.5 |
| air intake form | turbocharging |
| engine layout form | horizontal |
| cylinder arrangement form | L |
| number of Cylinders (number) | 4 |
| number of valves per cylinder (pieces) | 4 |
| compression ratio | - |
air distribution mechanism | DOHC |
| max. Horsepower (Ps) | 156 |
| maximum power (kW) | 115 |
| maximum net power (kW) | 105 |
| maximum power speed (rpm) | 5200 |
| maximum torque (N 路 m) | 220 |
| maximum torque speed (rpm) | 2500 |
| engine thermal efficiency (%) | 44.5 |
| engine Specific Technology | - |
fuel form | plug-in hybrid |
| fuel Label | 92# |
| oil supply mode | in-cylinder direct injection |
| cylinder head material | aluminum alloy |
| cylinder block material | aluminum alloy |
| environmental standards | state VI |
Motor
| motor Description | plug-in hybrid 224 horsepower |
| type of motor | permanent Magnet/synchronous |
| total motor power (kW) | 165 |
| motor total horsepower (Ps) | 224 |
| total motor torque (N 路 m) | 390 |
| max. Power of front motor (kW) | 165 |
| maximum torque of front motor (N 路 m) | 390 |
| comprehensive power of system (kW) | 280 |
| comprehensive torque of system (N 路 m) | 610 |
| number of drive motors | double motor |
| motor Layout | front |
Battery/Charging
| battery Type | lithium iron phosphate battery |
| battery brand | zhongxinhang |
| battery pack warranty | first owner lifetime warranty (liability exemption clause subject to official) |
| battery capacity (kWh) | 26.7 |
| battery energy density (Wh/kg) | - |
battery charging rate | - |
| battery charging | fast charge for 0.5 hours Slow charge for 4 hours |
| fast charging interface | |
| fast charging interface position | right fuel tank position |
| slow Charge Interface Location | right fuel tank position |
| battery temperature management system | low temperature heating |
| liquid cooling | |
| single Pedal Mode | - |
VTOL mobile power station function | standard |
| VTOL maximum external discharge power | 6.6kW |
| VTOV maximum external discharge power | - |
Gearbox
| gearbox description | 3rd gear DHT |
| number of gears | 3 |
| gearbox type | special gearbox for hybrid power (DHT) |
Chassis/Steering
| drive mode | front Precursor |
| front suspension form | macPherson independent suspension |
| rear suspension form | multi-link independent suspension |
| steering type | electric power assist |
| car body structure | bearing type |
wheel/Brake

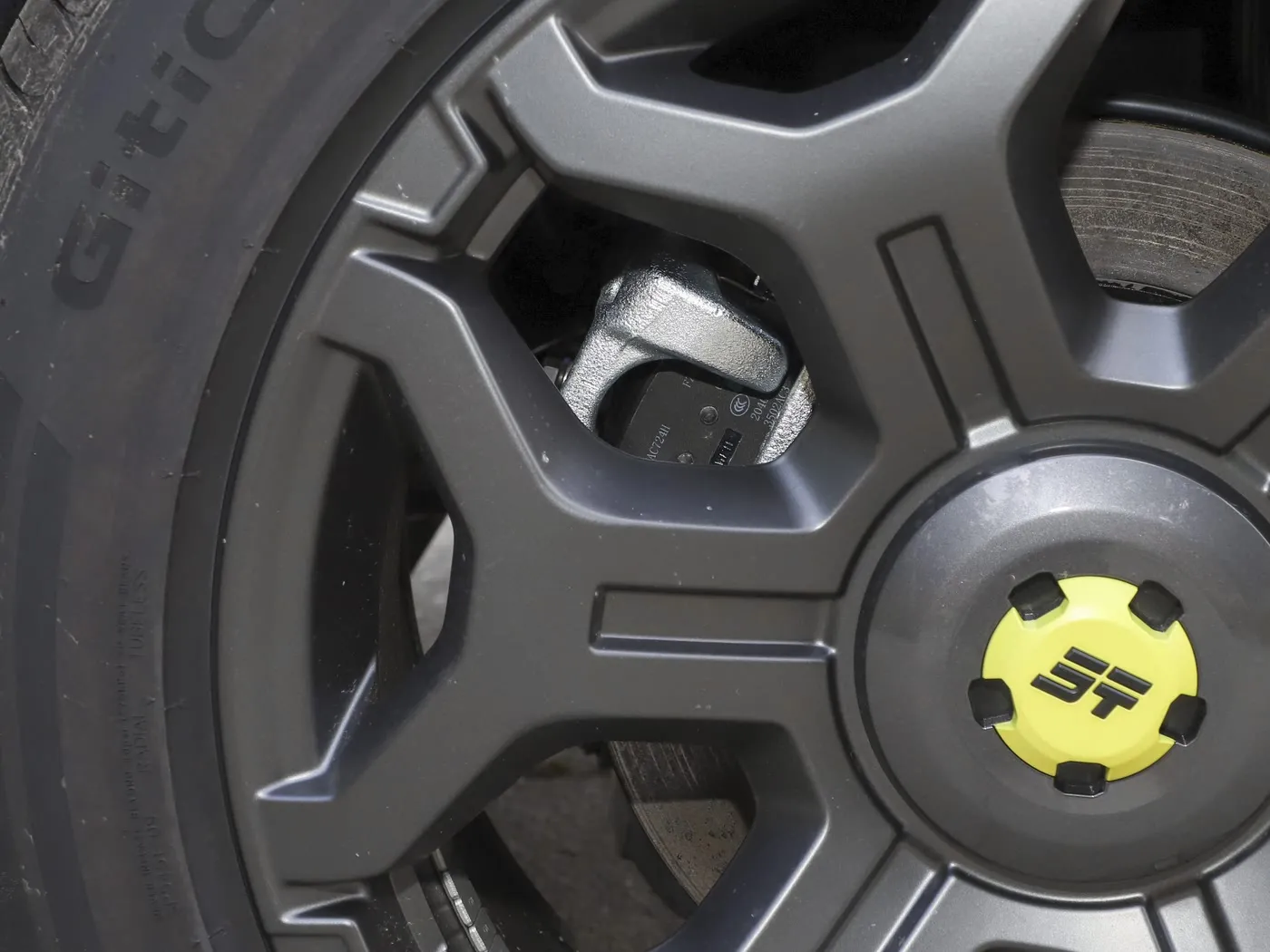

| front brake type | ventilation disc |
| rear Brake Type | solid disc |
| parking brake type | electronic parking |
| size of front tire | 255/55 R20 |
| rear tire size | 255/55 R20 |
| spare tire specification | non-full size |
| spare tire placement | knapsack |
